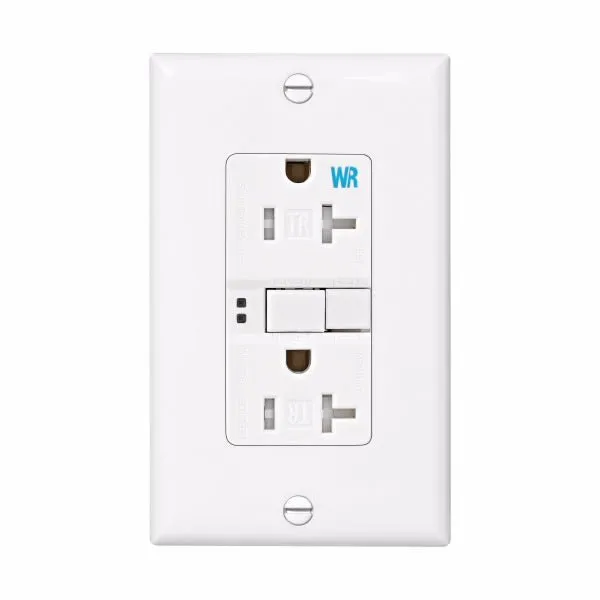

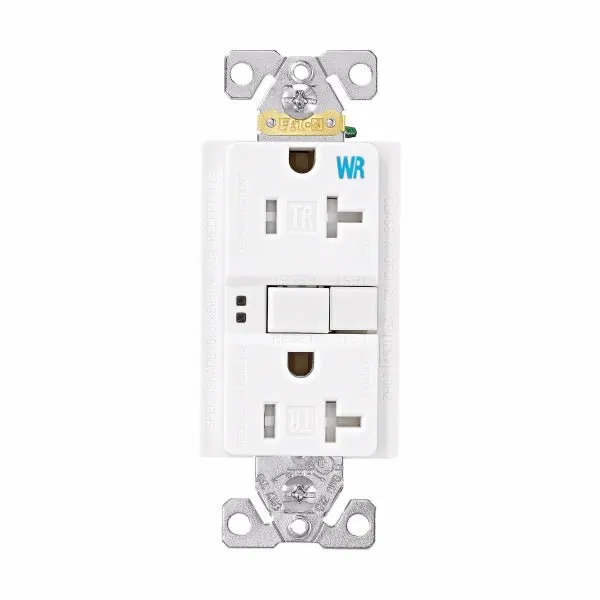

Cooper Wiring TWRSGF20W 20 Amp GFCI Self-Test Duplex Receptacle
Eaton GFCI receptacle ,Weather resistant, Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V ,Back and side wire, White, Brass, Tamper and weather resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
- Matching thermoplastic wall plate included
- Provides compliance with 2017 NEC® Article 406.9 that states that all receptacles installed in wet and damp locations must be weather resistant
- Manufactured with the highest grade materials; durable impact resistant thermoplastic face and back body is virtually unbreakable
- TR” designation provides visual identification that device has tamper resistant shutters preventing insertion of foreign objects
- “WR” indentifier quickly indicates during inspections that a weather resistant receptacle has been installed
- Terminal screws are backed out and ready to wire
- Extra-long and extra-wide mounting straps
- Patented built-in wire stripper for #14 and #12 wire to speed installation
- Side-wire terminals accept up to #10 solid or stranded wire
| Length (in.)
|
4.28" |
| Width (in.)
|
1.68" |
| Depth (in.) |
1.26" |
| Weight (lbs) Each |
0.41 lbs |
Spec Sheet
Info
| Type |
GCFI Receptacle |
Connector Type
|
|
| Certifications |
cULus Listed UL Listed
|
| Color |
White |
| Material |
Thermoplastic, PVC |
Additional Info
| Wiring Method |
Back and Side Wire |
| Mounting |
Flush |
| Wire Size |
#14-10 AWG |
| Number of Poles |
Two-pole, three-wire, grounding |
| Voltage |
125V |
| Amp. Rating |
20 A |
| Use |
Residential / Commercial |
| Torque Rating |
16 lbf-inch |
| Compliances |
- cULus Listed to UL498, file no. E15058
- UL certified to CSA C22.2, no. 42
- NOM/ANSI certified.
|
